by ropeway-admin | Sep 28, 2026 | Installation, Ropeway Installation
Cement plants can’t run without a constant flow of limestone. It travels from the quarry to the crusher, then to the stockyard, then into processing, day after day, with no breaks in between. The problem shows up when the quarry sits far from the plant. There might be a valley cutting through, a river in the way, thick forest, or just plain distance. Moving limestone by truck across ground like that turns slow and pricey pretty quick. That’s where material ropeways step in. Rather than fighting the land below, they just travel above it.
To get a sense of scale, India made close to 453 million tonnes of cement in FY25, a rise of 6.3% over the previous year. FY26 numbers are expected to climb near 490 million tonnes, while total installed capacity sits around 700 million tonnes a year. On a global level, the U.S. Geological Survey estimates 2025 cement output at about 3.8 billion tonnes. With figures that large, the way a plant handles its raw material isn’t just some background logistics issue anymore. It turns into one of the things that decides how smoothly the entire operation actually works.
What Exactly Is a Cement Plant Ropeway?
At its core, it’s an aerial system that carries bulk material. Mostly crushed limestone, using suspended buckets or carriers instead of trucks on a road. A single line can typically connect:
- Limestone quarry to crusher
- Quarry directly to the cement plant
- Crusher to stockyard
- Stockyard to the processing area
- Separate plant units split by rough terrain
- Remote extraction sites back to the main plant
The system itself is made up of carrying ropes (and haul ropes, depending on the configuration), towers, drive and return stations, carriers, loading/unloading points, braking systems, and controls. Even if the engineering behind it is not the same, the idea is quite simple. Skip the part where you build a road. Rather, build a route through the air instead.
Brazil offers a very strong real-world case here. A rope of 10km length now carries around 9,000 tonnes of limestone in a day to a cement plant. The task that used to demand something like 900 truck trips daily just to keep up.
That gap, between one continuous line and a small army of trucks, shows exactly what a properly engineered industrial ropeway can achieve.
Why Cement Plants Actually Need This
Limestone is the main material in cement making. It takes up to 1.5 tonnes of limestone to make one tonne of cement. That number can change depending on the mix and uses. Now count that for daily use. This is not occasional transport work. When the project is going on, it has to run non-stop. Even if a plant is near a limestone reserve, it might still struggle to reach the exact location in reality. Distance on a paper map doesn’t really tell the real requirements during transportation.
A quarry stuck behind a ridge or cut off by a valley often means building a road with heavy earthwork, drainage, bridges, and repairs that never really end. A ropeway can skin all of that and go straight to the location without needing any road.
Where Ropeways Get Used in Cement Operations
Quarry-to-plant limestone transport is the most established use case. Crushed limestone gets loaded into buckets at the quarry and carried straight to the plant’s receiving station, feeding into crushing or raw-material handling from there.
The Cement Corporation of India runs a bi-cable ropeway at its Rajban plant in Himachal Pradesh. It’s used to move crushed limestone straight to the plant. The setup is documented, and it’s a real example of this system working on the ground.
Moving material to stockyards is another common application, especially when the stockpile sits away from the quarry due to land constraints or plant layout. Several cement project documents list ropeways alongside belt conveyors as options for feeding crushed limestone into stacker-reclaimer areas.
Crossing difficult terrain is where ropeways really separate themselves from road transport. A road has to follow the contours of the land; an aerial line doesn’t. A cement works in France demonstrates this well. Its ropeway crosses the Isère River and a six-lane motorway while keeping a remarkably small footprint on the ground.
Handling other bulk materials is possible too, though it depends heavily on particle size, density, moisture content, and required throughput. Beyond limestone, ropeways can be engineered for aggregates, ore, coal, and other construction materials, with the carrier and loading setup built around what’s actually being moved.
How the System Actually Works
It’s a fairly straightforward cycle once you break it down:
- Loading – crushed material goes into buckets at the loading station.
- Transport – carriers move along the line, supported by towers spaced according to the route’s engineering.
- Control – a drive system manages speed, braking, and safety monitoring throughout.
- Discharge – material drops into a hopper, conveyor, or stockpile at the receiving end.
- Return – empty carriers head back to load again.
Longer routes often need intermediate stations to break up the line. A 13.7 km limestone ropeway in Brazil, for example, runs across multiple sections with several loading, unloading, and intermediate stations, moving around 600 tonnes an hour.
What Cement Plants Actually Gain From This
Fewer trucks on the road: Less diesel, fewer drivers to manage, less wear on roads, less traffic congestion around the plant. The longer the distance and the higher the daily tonnage, the more this adds up.
Better handling of rough terrain: Steep gradients, valleys, and rivers that would otherwise demand serious road construction simply aren’t a problem for an aerial line.
A smaller footprint on the land: Towers and stations need only a fraction of the land a full road corridor would take up, though that’s not the same as saying there’s no footprint at all. Foundations, access paths, safety clearances around the towers- all of it still needs careful planning. It’s not an impact-free option. It’s just a much lighter one.
Steadier material flow: Cement production doesn’t like interruptions, and a well-engineered ropeway gives a predictable, continuous supply rather than one that depends on truck schedules and traffic.
Less road wear and dust: Fewer trucks running back and forth also means less road damage and less airborne dust from vehicle movement, with the actual savings depending on the electricity source, distance, capacity, and how the trucks it’s replacing were being run.
More predictable running costs: Truck fleets carry a long list of variable costs: fuel, tyres, drivers, repairs, road upkeep, vehicle replacement. Ropeways have their own maintenance needs too, covering ropes, bearings, drives, carriers, and control systems, so it’s not “maintenance-free” by any means. But over a high-volume, long-term operation, the cost structure tends to be more stable and easier to forecast.
A genuinely long service life: Some systems have been running for decades. At Holcim’s Dotternhausen plant in Germany, limestone has been carried by ropeway since 1942, with a 2020 upgrade lifting capacity from 300 to 450 tonnes per hour. That’s also a good reminder that upgrading an existing line can sometimes make more sense than starting from scratch.
Ropeway vs. Truck: Quick Comparison
| Factor |
Ropeway |
Truck Transport |
| Difficult terrain |
Handles it well |
Often a real challenge |
| Continuous transport |
Yes |
Depends on fleet size |
| Road requirement |
Minimal |
Full road access needed |
| Driver requirement |
Low |
High |
| Traffic impact |
Low |
Higher |
| Land requirement |
Towers and stations |
Continuous road corridor |
| Initial investment |
Often significant |
Usually lower upfront |
| Route flexibility |
Fixed |
High |
Neither option wins outright- it comes down to distance, tonnage, terrain, budget, and how long the route needs to stay in service.
Before You Install One
A proper feasibility study should look at tonnes-per-hour needs, distance, elevation change, terrain, weather patterns, material characteristics, carrier capacity, tower and station placement, power availability, safety clearances, and critically, future production growth. A ropeway sized for today’s average load rather than tomorrow’s peak load is a mistake that’s expensive to fix later.
Picking the Right Configuration
There’s no universal ropeway design. Monocable versus bicable, line length, tower spacing, station layout, drive type. All of it needs to be worked out for the specific site. A cement company in Maharashtra, for instance, runs a 7.5 km bi-cable system engineered for 650 tonnes per hour of limestone. That configuration was built for that route; it wouldn’t necessarily work anywhere else.
Where M&M Ropeways Fits In
With more than 35 years in the business and over 120 completed ropeway projects, M&M Ropeways works on ropeway engineering and design built around OITAF guidelines, backed by in-house manufacturing facilities. The typical project runs through route feasibility, capacity planning, detailed engineering, fabrication, installation, commissioning, and ongoing maintenance services – which matters because a ropeway needs to integrate cleanly with a plant’s existing quarry and material-handling setup, not just get bolted on afterward.
When Does a Ropeway Actually Make Sense?
It’s worth serious consideration when the quarry sits several kilometres out, the terrain is steep or broken, road-building would mean heavy earthwork, truck traffic is becoming a real operational or environmental issue, the plant needs consistent high-volume flow, and the route is expected to run for years with room for future expansion. If the quarry is right next door with existing road access, trucks or conveyors will likely be the more economical call.
Final Word
Ropeways built for cement plants are meant to fix one problem, and fix it well: getting limestone and other bulk material from quarry to crusher to stockyard to plant, in places where roads just don’t make sense because of the terrain or the distance involved. Get the setup right, and they cut down how much you rely on trucks, keep material moving without interruption, ease the wear on local roads, and often cost less to run once you look at the long term. That last part only holds up if the engineering behind it is actually solid. If you’re thinking about this for your own plant, it’s worth reaching out to M&M Ropeways and going through the real numbers for your specific route, rather than trying to guess from a spec sheet.
FAQs
What are ropeways used for in cement plants?
Mainly to move limestone from quarries to plants or stockyards, and sometimes other bulk materials depending on the design. Their biggest strength is crossing terrain, valleys, slopes, rivers, roads, and rail lines without needing a ground-level route.
Can a ropeway carry limestone over long distances?
Yes. Capacity and length depend on the specific configuration, but existing systems already run several kilometres, including a 13.7 km line in Brazil moving 600 tonnes per hour.
Are ropeways better than trucks for cement plants?
Not always. They tend to win on high volume, continuous operation, and difficult terrain. Trucks stay more flexible for smaller or frequently changing loads. The real answer comes from comparing full lifecycle costs, not just upfront price.
How much material can a cement plant ropeway move?
It varies by design. Some systems run around 450 tonnes per hour; others reach 600-650, depending on route, carrier capacity, and operating hours.
What drives the cost of a cement plant ropeway?
Route length, elevation change, number of towers and stations, carrier type, electrical and control systems, and site accessibility all factor in, which is why a proper site survey has to come before any cost estimate.
Can M&M Ropeways handle a cement plant project end to end?
Yes, design, engineering, manufacturing, installation, and commissioning, built around OITAF guidelines, with over 35 years of experience and 120+ completed projects.
by ropeway-admin | Sep 22, 2026 | Installation
Penstock installation is one of the toughest jobs in a hydropower plant. Penstocks often run down steep mountain slopes. These sites may be far from roads and clear paths. Moving heavy penstock pipes can be very difficult.
Trucks cannot reach many such slopes. Cranes may also fail to reach the exact location. M & M Ropeways uses aerial ropeways and cable crane systems for these challenging sites. With 35+ years of experience and 120+ completed projects, the company handles penstock installation in remote areas. Its systems can also transport pipe sections safely at high altitudes.
What Is a Penstock?
A penstock in a hydropower plant is a large pipe. It carries water from a reservoir or forebay to a turbine. The water pressure turns the turbine and helps generate electricity. Penstock pipe material is usually steel or reinforced concrete. These materials can handle high pressure and heavy loads. A penstock pipe can run for hundreds of meters down a hillside. This makes penstock installation a complex job. It needs careful planning from the first site visit.
Why Penstock Sites Need Special Transport
Most hydropower projects sit in hilly or mountainous regions. Roads are often missing or too weak to support heavy trucks, and building new roads solely for installation can take many months. This also disrupts the natural slope and increases the risk of landslides in the area. On top of this, a penstock pipe comes in large, heavy sections, and each piece must reach an exact point on the slope. Cranes and trucks cannot always reach these points safely. This is exactly why penstock installation in remote terrain depends so heavily on ropeway transport. Hydropower sites generally sit near forests, rivers, or protected land. So cutting trees or grading slopes for roads can harm the local ecosystem. A ropeway system for pipe transport avoids most of this disturbance because it runs overhead, above the natural terrain. You can read more about this challenge in our post on aerial ropeways for difficult terrain construction.
Types of Ropeway Systems M&M Uses:
M & M Ropeways uses different systems depending on the site and load:
- Material ropeway system: used for moving pipe sections, tools, and general construction material
- Cable crane: handles heavier, bulkier loads across wider spans, common on large cable crane hydropower projects
- Passenger or combined ropeways: move workers alongside material transport on the same line
Each penstock ropeway uses a mix of fixed towers, moving cables, and load-bearing trolleys. The choice depends on slope angle, distance, and the weight of each section, and engineers select the right ropeway for hydropower projects after studying these site conditions closely. Some projects need more than one line, so longer routes may use relay stations along the slope for steep slope pipeline transport. This breaks the work into shorter, more manageable stages and keeps cable tension within safe limits across the full route.
How M & M Ropeway Systems Work for Penstock Installation
M & M Ropeways follows a clear process from survey to final placement. It starts with a detailed site survey, where engineers study the slope, the pipe route, and the total load requirements, and then plan the best ropeway alignment for the project, checking anchor points at the top and bottom of the slope. Once the route is fixed, teams set up loading and unloading stations at the top and bottom of the line, with strong anchor towers holding the main cables firmly in place. Every anchor point is tested for load capacity before regular use begins.
Next, the main carrying cables are strung across the slope, and a trolley or carriage system runs along these cables smoothly. This carriage holds and moves each penstock pipe section safely, while operators control the speed and load from the ground station. Each section is loaded onto the trolley at the base station, and the ropeway carries it up or down the slope steadily. Workers guide the pipe to its exact point on site, and this process repeats until all sections are in place. Before regular operation, every system also goes through load testing, where cables, anchors, and trolleys are checked for safe working limits. This step protects both the pipe and the workers on site throughout penstock installation.
Benefits of Using Ropeways for Penstock Projects
Choosing ropeways for penstock installation brings several advantages over conventional material transport:
- Faster construction timelines, since ropeways skip the need for building new roads and save weeks or months of work
- Cost efficiency, since a ropeway system for pipe transport often works out cheaper than temporary roads over the full project timeline
- Lower environmental impact, since the ground stays mostly undisturbed with fewer trees cut and less soil moved
- Access to hard-to-reach sites, since M & M systems operate at altitudes up to 18,000 feet and in temperatures down to -35°C
- Better safety for workers, since ropeways handle the heavy lifting mechanically instead of manual carrying on steep slopes
M & M Ropeways’ Track Record
M & M Ropeways has completed more than 120 projects across different terrains, including hydropower, pumped storage, and dam sites. The company is ISO certified and follows OITAF safety standards throughout. OITAF is the international organization for ropeway transport standards. This means every system used for penstock installation meets recognized safety and engineering benchmarks. With over three decades in this field, the team understands the specific demands of moving a penstock pipe through difficult terrain and works closely with project engineers from the survey stage through final placement. For related work on high-altitude hydropower construction, see our post on ropeways and cable cranes for pumped hydro projects.
Do ropeway systems need maintenance after installation?
Ropeway systems need regular checks once installation work is complete. Cables, anchors, and trolleys should be inspected on a set schedule, which keeps the system safe for any future material transport needs.
Planning a hydropower project in difficult terrain? M & M Ropeways can help with penstock installation, moving pipes and construction materials safely and efficiently across steep sites. Contact the team today to discuss your specific site requirements.
Doubts related to the Penstock ropeway? Here you go.
Q1. What is a penstock used for?
A penstock carries water from the reservoir toward the turbine, and the water pressure spins the turbine so electricity gets produced. When the penstock installation is done properly, the power plant runs more safely and also more efficiently.
Q2. Why would someone use a ropeway for penstock installation?
A ropeway is helpful because it can reach steep, remote spots without building new roads or extra groundwork. They tend to save time, reduce environmental stress, and make workers safer during the whole penstock installation process, so it becomes a practical method for hydropower landscapes.
Q3. How high can M & M ropeway systems operate?
M & M Ropeways can build ropeway systems that operate at altitudes up to 18,000 feet, and in addition, they keep working properly even when temperatures drop to -35°C, even in pretty harsh conditions.
Q4. Are ropeway systems safe when handling heavy loads?
Yes, these systems are designed for heavy loads and for repeated everyday use too. M & M Ropeways follow ISO and OITAF safety standards closely, and before regular operation, each anchor point and each cable are tested.
Q5. How long does a penstock ropeway setup take?
Project timelines vary by terrain, distance, and total load, though most ropeway setups for penstock installation take a few weeks once site surveys and planning are complete.
by ropeway-admin | Sep 22, 2026 | Installation, Ropeway Installation
Tunnel construction rarely happens on flat, open ground. Most tunnel sites sit deep inside hills, gorges, or mountain belts where trucks cannot reach the work face. Roads take months to build. Even then, monsoon rains wash them out fast. This is where a well-planned ropeway system changes the outcome of the entire project. It carries workers, machine parts, and construction materials straight to the tunnel portal, skipping the terrain problem completely.
Planning a ropeway installation for a tunnel site is not the same as planning one for tourism or passenger use. The loads are heavier. The schedule is tighter. And material has to move in both directions.
This guide walks through every step of planning a ropeway system for a tunnel construction site, from the first survey to the final safety check.
Why Tunnel Construction Sites Need a Dedicated Ropeway System
Tunnel work depends on a steady supply chain. Cement, steel, ventilation ducts, and fuel need to reach the tunnel face. At the same time, excavated rock and mud, known as muck, need to leave the site just as fast. If either side of this flow slows down, the whole project slows down with it.
A dedicated ropeway system solves this by running scheduled trips that do not depend on road conditions. Rain, landslides, or a blocked hill road will not stop it. This is one reason ropeway construction has become common in hydropower, dam, and tunnel projects across hilly Indian states.
Our earlier guide on aerial ropeways for difficult terrain construction covers this challenge in more depth, including how ropeways compare with building temporary access roads.
Step 1: Survey the Site Before You Design Anything
No ropeway system should be designed from a map alone. A physical site survey comes first.
The survey team studies:
- Ground slope and stability along the proposed route
- Distance between the material yard and the tunnel portal
- Rock type and soil conditions for tower foundations
- Wind exposure at higher points on the alignment
- Access for maintenance vehicles once the line is running
This step decides almost everything that follows. Get the survey wrong, and the whole ropeway construction plan needs rework later, which costs both time and money.
Step 2: Match the Ropeway Type to Tunnel Logistics
Not every ropeway system suits a tunnel construction site. The choice usually comes down to how much weight moves per trip and how often the line needs to run.
| Factor |
Material Ropeway |
Cable Crane |
| Best suited for |
Continuous small to medium loads |
Heavy, oversized loads |
| Typical use on tunnel sites |
Cement, steel, worker supplies |
Formwork, machinery parts, muck skips |
| Route flexibility |
Fixed line between two or more stations |
Works across wide spans and valleys |
| Setup complexity |
Moderate |
Higher, needs stronger anchor points |
| Common site type |
Access-restricted hill sites |
Dam faces, tunnel portals, deep gorges |
Many tunnel projects end up using both systems together. A material ropeway handles daily supply runs, while a cable crane manages the heavier, less frequent lifts. Our detailed comparison of cable cranes vs traditional cranes explains why cable cranes often outperform standard cranes on steep tunnel sites.
Step 3: Plan for Two-Way Material Flow
This is the part planners overlook most often. Tunnel construction is not one-directional. Supplies go in. Muck comes out. Both movements happen on the same day, sometimes at the same time.
A ropeway system planned only for inbound delivery will bottleneck fast once excavation starts. The line needs enough carrying capacity and trip frequency to handle both directions without one queue blocking the other.
Good planning also builds in a buffer. Tunnel boring does not stop for weather the way road transport does. If the excavation pace increases, the ropeway needs spare capacity to keep up. This point matters just as much as tower placement, yet it gets far less attention during early planning.
Step 4: Choose Tower and Anchor Placement Carefully
Tower and anchor positions decide the safety and lifespan of the entire line.
Key points to check:
- Towers should sit on stable ground, away from loose slopes or drainage paths
- Anchor stations need enough clearance from the tunnel portal to avoid dust and vibration damage
- Span length between towers should match the load the ropeway will carry
- Ground clearance under the loaded line must account for machinery movement below
Getting this step right early avoids costly tower relocation once ropeway construction is already underway. Our guide on key factors in ropeway installation projects breaks down terrain and load factors in more detail.
Step 5: Build In Safety and Compliance from Day One
Tunnel sites already carry high safety risks from excavation, blasting, and confined spaces. Adding an overhead ropeway system means safety planning has to cover both operations together.
At minimum, planning should include:
- Load testing before the line goes into daily use
- Clear signal and communication protocol between loading and unloading points
- Scheduled inspection of ropes, towers, and braking systems
- Safety training for every worker who loads, unloads, or rides the system
- Emergency evacuation procedure for the line itself
These steps should follow recognised engineering standards, not be added as an afterthought. Our complete breakdown of safety measures during ropeway installation is a useful reference for site engineers drafting this part of the plan.
Step 6: Coordinate Ropeway Construction With the Tunnel Timeline
A ropeway system built too late in the schedule defeats its own purpose. It should be operational before heavy tunnel excavation begins, not after delays have already piled up.
Coordination usually covers:
- Aligning ropeway construction milestones with tunnel boring start dates
- Scheduling shared use of cranes or lifting gear between both crews
- Planning maintenance windows that do not clash with excavation shifts
- Keeping a shared logistics calendar between the ropeway operator and tunnel contractor
This kind of early coordination is common practice on hydropower projects too. Our article on cable crane systems for hydropower construction shows how similar planning works on comparable high-difficulty sites.
Common Mistakes to Avoid When Planning Ropeway Installation
- Skipping the ground survey to save time early on
- Sizing the line for current load, not peak excavation load
- Ignoring wind and weather exposure at tower locations
- Treating maintenance access as a later problem
- Leaving safety training until just before the line opens
Each of these mistakes is avoidable with early planning. None of them are cheap to fix once construction is underway.
Why Choose M & M Ropeways for Tunnel Construction Projects
M&M Ropeways designs and builds ropeway systems for some of the most demanding places in India, especially for hydropower, dam, and tunnel construction projects. We have a team that takes care of the whole ride, from the site survey and design stage all the way to ropeway installation and long-term maintenance support. So everything keeps working as it should.
Every project follows applicable engineering and safety standards, with equipment built for steep terrain and heavy daily use. If your tunnel construction site needs a reliable material transport solution, our engineers can walk through the planning process with you from day one.
If you need a reliable material transport solution for your tunnel construction project, talk to our engineers about your requirements. Contact M&M Ropeways to discuss your project and find the right ropeway solution.
Key Questions About Ropeways for Tunnel Projects
Q1. What is the main use of a ropeway system on a tunnel construction site?
A ropeway system moves construction material and workers to the tunnel face while also carrying excavated muck out. It replaces road transport where terrain makes road access slow or unreliable.
Q2. How long does ropeway installation take for a tunnel project?
Timelines vary by route length, load requirement, and terrain. A proper site survey during early planning gives the most accurate installation timeline for each project.
Q3. Can one ropeway system handle both supplies and muck removal?
Yes, when planned correctly. The system needs enough capacity and trip frequency to manage both inbound and outbound loads without delays.
Q4. Is a material ropeway or a cable crane better for tunnel construction?
It depends on load size and frequency. Material ropeways suit regular medium loads, while cable cranes handle heavier, less frequent lifts. Many tunnel sites use both together.
Q5. Does ropeway construction need special safety clearance?
Yes. Ropeway systems on active construction sites need load testing, inspection schedules, and safety training that align with recognised engineering standards before daily operation begins.
by ropeway-admin | Jul 14, 2026 | Installation, Ropeway Installation
Picking the right transport infrastructure is never just a budget decision. In difficult terrain, it becomes a decision that shapes the entire project. Getting it wrong directly means the project bleeds money for years.
Infrastructure decisions in difficult terrain are high-stakes. A mountain railway can cost 15 to 100 times more per km than the same route done by a ropeway. A hill road doubles in cost the moment tunnels and switchbacks enter the picture. Yet most planners compare these three modes without a clear cost breakdown in front of them.
This blog fixes that. Here is a direct comparison of ropeway, road, and railway infrastructure costs across construction, land use, and long-term maintenance.
Why Terrain Changes the Cost Equation
On flat ground, roads and railways are the default option. Because they scale well, their costs are predictable. And most of the world’s existing networks were built on exactly this logic.
But when terrain changes, like in mountains, gorges, or dense urban corridors, that logic breaks down fast. Roads in hilly terrain need switchbacks. That means more kilometres of road to cover the same straight-line distance. Railways in mountains need tunnels and bridges, both slow and expensive to engineer.
But construction cost alone rarely reflects what a project actually costs. Land acquisition, maintenance, clearances, and build time all factor in. In difficult terrain, every single one of these gets heavier. That is where the real difference between the three modes shows up.
Construction Costs: What the Numbers Really Say
Costs shift based on terrain and mode. Here is what the numbers look like for all three modes of transportation in hilly areas.
Roads: The Familiar Choice That Gets Expensive Fast
A two-lane road on flat ground costs between 3 and 6 crore per km. That number feels reasonable until the terrain tilts. Now add switchbacks, retaining walls, and mountain tunnels. And see how the same road becomes a different project entirely. The four-laning of the Nerchowk-Kullu highway in Himachal Pradesh cost around 65 crore per km. That gap between 6 and 65 is what mountain terrain looks like on a budget sheet.
Railway: Reliable on the Plains, Expensive in the Peaks
Railway works beautifully on flat ground. Standard flat-terrain rail in India costs between 8 and 15 crore per km. Manageable. Predictable. Then the terrain changes. The Udhampur-Srinagar-Baramulla Rail Link tells you exactly what happens next. 272 km. 36 tunnels. 943 bridges. Nearly 5 billion dollars in total project cost. The distance stayed the same. The ground did not.
Ropeway: The Straight-Line Advantage That Changes Everything
A basic single-line ropeway system costs around 20-50 crore per km. Urban multi-station systems run higher. But here is what changes everything. Ropeways travel in a straight line. In hilly terrain, a road might need 3 km of switchbacks to cover the same distance that a ropeway connects in 1 km. That reduction in total route length is what brings ropeway infrastructure cost down on a total project basis, even when the per-km figure looks comparable.
Costs are indicative. Actual figures vary by terrain, project scope, and specifications.
Land Acquisition: The Hidden Cost
Everyone talks about construction costs. Almost nobody talks about this one: Land acquisition. And in difficult terrain, it can cost more than the construction itself before a single machine moves.
Roads need a wide right-of-way strip. In populated or forested mountain areas, that means displacement, legal clearances, and compensation costs that can run into millions before a single kilometre of construction begins.
Railways need more land still. Stations, marshalling yards, buffer zones, and level crossings all require substantial ground. In protected forest zones or steep terrain, securing that land takes years.
But ropeways are different. They only need land for tower foundations, which have a narrow vertical footprint, and for terminal stations at each end. The ground in between stays completely untouched. In environmentally sensitive or legally complex regions worldwide, this low land requirement is one of the biggest financial and regulatory advantages of ropeway infrastructure.
What It Costs to Keep It Running
Construction is a one-time expense. Maintenance runs every year.
Roads in hilly terrain need constant attention. Erosion, landslides, and seasonal damage require ongoing resurfacing. In many mountain regions, roads close for weeks or months. That creates indirect economic losses on top of the direct repair bill.
Railways carry high recurring costs. Track inspections, signal systems, rolling stock servicing, and station upkeep all run year-round. Mountain rail adds significant complexity to each of those.
Ropeways are built differently. Most maintenance happens at stations and towers. A single power plant drives the entire line. One operator can manage the full system. Fewer moving parts means less to maintain and lower annual spend.
They also run on electricity, which keeps fuel costs low and direct emissions close to zero over the operational lifetime.
A Side-by-Side Comparison
Here is how all three modes stack up across the key cost and performance factors.

Costs are indicative figures for India in INR (crore per km). Actual figures vary by terrain, project scope, and specifications.
The Right Mode for the Right Terrain
No single mode wins every project. The right choice comes down to three things: terrain, volume, and what infrastructure already exists around the site.
Choose Ropeway When:
- Terrain is steep, mountainous, or crossed by gorges, rivers, or dense urban gaps
- Land acquisition is hard, costly, or restricted due to the environment or the law
- You need last-mile urban connectivity without digging roads or laying metro tracks
Choose Road When:
- Terrain is flat to moderately hilly, with high freight or passenger volumes
- An existing road network needs to be extended or upgraded
Choose Railway When:
- Very high volumes need to move over long, flat corridors
- Freight at scale is the priority, and an existing rail grid is nearby
The most expensive mode is not always the wrong one. And the cheapest is not always the right one. It comes down to where you are building and what you are moving.
The Projects That Prove the Point
Numbers count most only when they come from real ground. Here is what India’s own infrastructure projects show.
In Uttarakhand, the Sonprayag to Kedarnath ropeway covers 12.9 km at Rs. 4,081 crore. The alternative was a grueling multi-hour trek or a road that the terrain made nearly impossible to build safely. The ropeway cuts the journey to under 30 minutes.
Compare that to the Nerchowk-Kullu four-lane mountain highway in Himachal Pradesh. That road, 74 km long, came in at Rs. 4,800 crore, roughly Rs. 65 crore per km. A ropeway on the same terrain would have needed a fraction of the distance and far less land.
Then there is the Udhampur-Srinagar-Baramulla Rail Link. A 272 km mountain railway with 36 tunnels and 943 bridges. Total cost: nearly USD 5 billion. That is what railway infrastructure development costs look like when the terrain offers no easy path through it.
The pattern across all four is the same. In difficult terrain, ropeway systems consistently deliver more connectivity per rupee spent.
Ropeways Offer More Than Cost Savings
The financial advantage in difficult terrain is clear. But ropeway transportation benefits go beyond the numbers. Give a look at some of them that are listed below:
- They operate in weather conditions that close mountain roads
- They run at fixed, predictable speeds with no traffic congestion
- Full electric operation makes net-zero transport achievable
- They support tourism and local economic activity in scenic or remote destinations.
The Final Verdict
In flat, high-volume corridors, ROAD and RAILWAY remain practical choices. They have established supply chains, proven cost structures, and existing network connections to work with. But in difficult terrain, they can’t work smoothly.
Ropeways come out as the best solution there. Why? They need fewer kilometers, less land, shorter build timelines, and lower maintenance budgets. On a total project cost basis, they are often the most cost-effective transport infrastructure available for mountain and hard-to-reach locations.
If you’re assessing ropeway infrastructure for a project, M&M Ropeways is a prominent ropeway manufacturer in India. We have 3+ decades of ropeway industry experience that includes designing, manufacturing, and installing ropeway systems across some of the world’s most challenging terrain, like the Siachen Glaciers.
Reach out and talk with us about what your project really needs. Let’s align on the essentials, so you get a suitable arrangement.
by ropeway-admin | Jun 24, 2026 | Installation, Ropeway Installation
Ropeway installation ranks among the most technically demanding construction activities in India. You are not building on flat ground with EASY access. You are working on steep ridges, deep gorges, and high-altitude TERRAIN where a single miscalculation carries serious consequences.
India’s National Ropeways Development Programme, Parvatmala Pariyojana, has triggered over 200 NEW ropeway projects across the country. The sector is growing FAST. And with that growth comes a question every project team must answer honestly: Are we taking ropeway installation safety seriously enough? As projects multiply, safety cannot be an afterthought. It has to be the first decision made, before a single foundation is dug.
This blog covers the essential safety measures during ropeway installation projects, from pre-installation planning to final commissioning checks, so your team knows exactly what to follow at every stage.
Why Must Safety Planning Begin Before Ground Breaks?
Most ropeway installation accidents don’t happen during the actual work. They happen when someone skips the planning phase or rushes through it. The ground you build on tells you everything. A pre-installation site survey is the first non-negotiable step before any equipment arrives or any worker sets foot on the corridor. Here is what every ropeway installation safety plan must cover before work begins:
- Complete route survey: topographical and geotechnical.
- Analyse local weather: wind, snow, and rain patterns.
- Identification of underground utilities and power lines.
- Map all landslide zones, steep slopes, and weak ground.
- Load-bearing capacity test for every foundation site.
- Clearance mapping from inhabited areas and water bodies.
Skipping any one of these steps creates blind spots. And on a ropeway project in mountain terrain, blind spots cost lives. Every decision you make on paper saves lives on the ground.
Why Is Site Preparation the Most Overlooked Safety Phase?
A poorly prepared site is an accident waiting to happen. Ropeway construction safety starts with ground preparation, not cable installation. Every tower foundation site needs a secure exclusion zone. Clear the working corridor before any equipment arrives. Remove all vegetation and loose debris first, do not wait until day one of installation. Mark every excavated pit immediately after digging. Barricade every trench before the next shift starts.
Moving a cable crane into position carries real risk. Bad access paths make that risk worse. Plan every access route before work begins. Slope stabilization comes before excavation, always. Never excavate first and stabilize later. That order has caused accidents before. Temporary retaining structures on steep slopes are a requirement.
Assign a dedicated site safety officer from Day 1 of ground preparation, not Day 1 of installation. By the time installation begins, the hazards are already set. The safety officer needs to be present when the ground first breaks. Every shortcut in site prep becomes a hazard during installation. The ground tells you everything if you are willing to listen before the work begins.
Tower Erection Safety, Where Most Incidents Occur
Tower erection is where most accidents happen. Workers are at extreme heights. Locations are remote. The weather is unpredictable. One lapse in protocol at this stage costs more than time. Your safety rules must be the strictest here, with no exceptions and no shortcuts on any ropeway installation project.
Safety Rules for Tower Erection Teams:
- Verify foundation curing before erection begins: An incomplete cure is a structural failure waiting to happen. A tower erected on an incompletely cured foundation can shift under load. Always get written confirmation from the site engineer before lifting a single panel.
- Deploy only certified, experienced height workers: Height work during aerial ropeway installation requires specific training. General construction workers are not qualified for this phase.
- Conduct daily health screening before climbing: Physical fitness matters at altitude. A dizzy worker 40 feet up is a fatality waiting to happen.
- Follow the manufacturer’s assembly sequence (no shortcuts): Every tower has a specific build order. The manufacturer sets it for a reason. Change that sequence, even slightly, and the tower loses its structural balance. Follow it exactly, every step, every time. No shortcut is worth the risk.
- Zero work during high winds, rain, or low visibility: Weather delays cost time. Accidents cost lives. There is no comparison.
PPE Requirements Every Ropeway Worker Must Follow
PPE stands for ‘personal protective equipment’. Think of it as everything a worker wears on site, head to toe. Helmet, harness, gloves, boots, vest. Every single item exists for one REASON: to stand between the worker and a serious injury.
PPE for ropeway workers is not a formality. It is the last barrier BEFORE a serious injury occurs. Full-body harnesses, double lanyards, steel-toe boots, Class-A helmets, impact-resistant GLOVES, high-visibility vests, and fall-arrest devices are all mandatory on every ropeway installation site. No exceptions. The same discipline that builds a reliable aerial ropeway must protect every person installing it.
Availability is rarely the problem. Compliance is. Every morning, before the shift starts, a dedicated safety officer must inspect every worker’s PPE. Worn equipment gets replaced. The damaged gear gets pulled. Uncertified items never enter the site. A worker who skips the check does not enter the site, simple as that. This rule APPLIES to everyone. Project manager included.
Wire Rope Handling and Tensioning: Where Attention Saves Lives
Wire rope tensioning is the most technically precise operation in the entire cable ropeway installation process. Every safety error here has structural consequences that no amount of post-installation correction can fix.
Wire Rope Safety, Rules Your Team Cannot Afford to Skip:
- IS/BIS-certified ropes only, no exceptions.
- Inspect metre by metre for kinks, rust, and broken strands.
- Use calibrated tensioning tools
- No personnel in the cable corridor during stringing.
- No splicing, no repairs, and replacing the full rope.
- Document actual tension values at every anchor point.
- Never work close to energized power lines (distance saves lives).
Comparison Table: Safe Practice vs Common Mistakes
| Safety Checkpoint |
Safe Practice |
Common Mistake |
| Rope inspection |
Full metre-by-metre visual check. |
Glance at the reel surface. |
| Tensioning |
Calibrated equipment with readings. |
Manual feel-based adjustment. |
| Corridor clearance |
All personnel out before stringing. |
Workers standing near towers. |
| Rope condition |
Replace on the first sign of damage. |
Continue using the damaged rope. |
| Documentation |
Written rope tension record at every anchor point. |
Verbal confirmation only. |
| Weather check |
Suspend stringing in high winds. |
Continue work in bad weather. |
One compromised rope strand can trigger catastrophic failure under full load. The cable crane systems and drive components connected to this rope depend entirely on its integrity. Ropeway installation safety demands zero tolerance during this phase on the rope, the equipment, and the people handling it.
Important Safety Guidelines Every Ropeway Site Should Follow
Equipment does not fail people. Untrained people fail equipment. On a ropeway construction safety site, especially in remote mountain terrain, the nearest hospital can be hours away. Every worker involved in a ropeway project must hold valid safety certifications before stepping on site. Training is a continuous practice throughout the project. Below are the safety training protocols every ropeway site must follow:
#1. Mandatory Safety Certification Before Site Entry
No certificate means no entry. That is the rule. Every worker needs valid, up-to-date safety training before stepping on a ropeway installation site. Not last year’s training. Current, verified, and confirmed. A worker who cannot identify height hazards, falling objects, or equipment failure puts everyone at risk, not just himself. Check certifications before the project begins. Do not wait for the first incident to find out someone was not qualified.
#2. Daily Toolbox Talks Before Work Begins
Every morning starts the same way. Before any tool is PICKED up, the crew sits down for a short briefing. The weather that day. Tasks for the shift. Any new hazards spotted on site. The whole thing TAKES under 10 minutes. But those 10 minutes matter MORE than most teams realise. Safety fades from the mind quickly on a busy site. Toolbox talks bring it back every single morning. Sites that skip them show it in their incident reports.
#3. Mock Rescue Drills at Least Once a Month
Help will not come quickly on a mountain site. Rescue teams can take hours to arrive, sometimes longer. That gap is your crew’s responsibility to fill. Every worker must know their role the moment something goes wrong. Who makes the call for help? Who stabilises the injured person? Who keeps the rest of the site under control? Who directs the rescue team when they finally arrive? Run this drill every month. A crew that has never practised will not perform when it counts.
#4. First-Aid Kits, Stretchers, and Fire Extinguishers at Every Active Work Zone
Not at the site office. Not in the storage tent. At every active work zone, wherever workers are operating that day. The accident does not WAIT for you to walk back to the office for the first-aid kit. Stock each ZONE with a fully equipped first-aid kit, a stretcher, and at least one fire extinguisher. Check the inventory every week. An expired medicine or an empty extinguisher is as useless as no equipment at all.
#5. Emergency Contacts and Hospital Routes Posted at the Site Office
Every worker on site must know THREE things: the nearest hospital, the emergency contact numbers, and the fastest route out of the site. Do not keep this information in a file. Print it in large text and post it on the site office wall, the tool storage area, and the crew rest area. In a panic, no one has time to search for a phone number.
#6. Incident Reporting for Every Near-Miss, Documented in Writing
A near-miss is not a lucky escape. It is a sign that something is already broken. Every near-miss gets documented, including what happened, where, who was involved, and why it happened. No verbal reports. No, we will sort it later, only when it is written, signed, and filed. Then, investigate the root cause before work continues. Fix the gap, not just the symptom. Because a near-miss that goes unreported will happen again. And next time, someone will not walk away from it.
Training takes hours. An untrained mistake on a mountain site can take a life. Invest in the right one.
Why Is M & M Ropeways the Right Partner for Your Project?
M & M Ropeways has spent over 35+ years working across India’s toughest terrain. In mountains, deep gorges, river valleys, and high-altitude glaciers, the company has installed systems where most teams would not even attempt a survey. That kind of experience does not come from a brochure. It comes from solving real problems on real sites.
The company handles every stage in-house. Design, manufacturing, and installation, all under one roof. No subcontracting critical work. No gaps in accountability. When something needs to be built a specific way, the same team that designed it also installs it. That matters on a ropeway installation project where precision and safety go hand in hand.

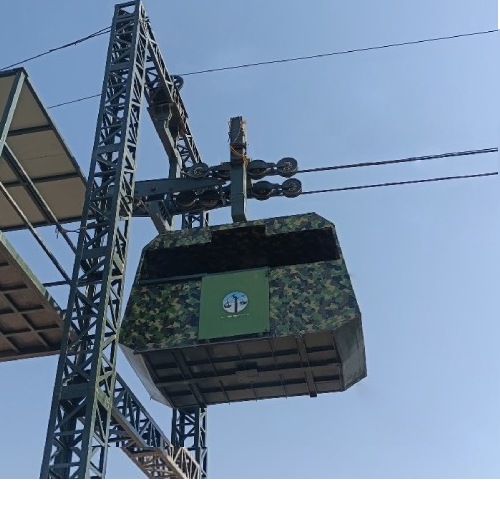

Not many companies have worked at 18,000 feet in -35°C for the Indian Army. M & M Ropeways has. That record speaks for itself.
Final Thoughts
Ropeway installation safety does not start at one point and end at another. It runs through every decision, every day, from ground preparation to final commissioning. The essential safety measures during ropeway installation projects covered in this blog are not optional. Skip one, and the consequences follow. Every team, every site, and every worker deserves full commitment to safety. Plan right, train hard, and execute safely. Do not leave safety to chance. Connect with M & M Ropeways and build it right from day one.
by ropeway-admin | Jun 4, 2026 | Ropeway Installation
In 2025, 5 national highways and about 1,350 roads remain blocked across Himachal Pradesh in a single monsoon season. At times, the monsoon gets so severe that it just washes away roads. Still, the usual answer never really changes. It is always like building more roads. But road infrastructure comes with a price. Cutting forests and turning slopes into routes can trigger landslides. Also, large investments in infrastructure often get damaged by extreme weather. Even if a road somehow survives, trucks moving on narrow mountain stretches end up burning more fuel, over 20% compared to flat highways. The chances of an accident increase. And then, every monsoon, it’s the same loop: damage, repairs, and then damage again.
That is exactly why more organizations are turning to Ropeway Installation as a reliable, efficient, & sustainable transportation solution.
Ready to explore a ropeway for your project? Contact our team today for expert guidance.
Why Ropeways Are No Longer Optional: They Are Essential
Depending on road transport alone will not always help you. From natural calamities to emergencies or scarcity of fuel, ropeway installation will be the only solution to these problems. Stats say that approximately 22% of India’s land is hilly and mountainous terrain. These regions are mainly under mining zones, hydropower projects, pilgrimage pathways, and tourist hill stations. So many people commute in these areas regularly for their daily lives, for transportation, and for travel. But these paths are sloppy and dangerous. An aerial ropeway system, however, needs no roadways at all – it rises above the terrain entirely. “No land clearing or slope disturbance. No road maintenance budget can really cope with monsoon erosion year after year.
A ropeway can easily cross a valley in a few minutes, but trucks take more than an hour on tough roads. That’s how India now moves goods and people through its most challenging geography.
Ropeways vs. Road Transport: The Numbers Make the Case
Here is a direct, factual comparison between road-based transport and an aerial ropeway system in hilly terrain conditions:
| Factor |
Road Transport |
Aerial Ropeway System |
| Fuel Cost |
Diesel dependency makes operating costs significantly high. |
Electrically powered, with near-zero fuel cost in operation. |
| Terrain Impact on Cost |
Fuel consumption rises considerably on hilly and rough roads. |
Completely unaffected by the terrain gradient below. |
| Carbon Emissions |
Road transport contributes substantially to India’s energy-related CO₂. |
Zero operational carbon emissions. |
| Environmental Damage |
Requires tree felling, slope cutting, and land acquisition. |
No land clearing, the tower saves space. |
| Weather Dependency |
Roads flood, slip, and shut down in the monsoon season. |
Continues operation through rain, fog, and seasonal weather. |
| Travel Time in Hilly Terrain |
Several times longer on steep and winding mountain routes. |
Covers the same distance in a fraction of the time. |
| Road Maintenance Cost |
Constant repair cycle (hilly routes degrade significantly faster). |
No roads, zero maintenance. |
| Empty Return Problem |
A large share of truck journeys run empty, adding dead costs. |
No empty return, the cable system runs both ways continuously. |
| Seasonal Cost Surge |
Shipping costs spike during the monsoon and peak seasons. |
Fixed operational costs are completely unaffected by seasons. |
| Long-Term Value |
Constant road repairs and vehicle maintenance costs. |
Built for decades of use with minimal ongoing costs. |
Road transport causes 20–30% of India’s urban air pollution. Ropeways, running on electricity, produce none. The technology alone does not guarantee success, but the right ropeway project planning does.
Let’s go further to discuss the key factors that affect the ropeway installation project before you install your first ropeway project.
#1 Terrain and Topography: The Starting Point of Every Decision
In any ropeway installation project, the terrain plays the most important role. Before starting the project, every team should carefully assess the complexities of the location. Ignoring these factors can lead to high expenses later in the project.
First, look at where the land is and its condition. The size of the valley and the slope of the land are all major factors. Carefully measure the distance between two points. How many towers are needed to build the ropeway, and can the ropeway be safely built at that location? For example, a wide rocky valley may need a stronger bicable or tricable system with longer spans, while a simple monocable system can work well on smoother hill station routes.
Why is a Site Survey for Ropeway Non-Negotiable?
A professional site survey for ropeway projects is extremely crucial. It includes land surveys, soil testing, and environmental checks to support safe and smooth ropeway construction. This helps engineers make the right decisions during planning and installation. Ignoring this step can cause major ropeway construction problems later.
#2 Project Purpose and Capacity Requirements
A cable car system carrying 500 tourists daily and one moving 10 tons of mining material every hour are built on completely different engineering foundations. Getting the purpose and load capacity right from day one is not paperwork. It shapes every bolt, cable, and motor that follows. Underestimate it early, and you pay for it for years.
For a passenger ropeway, planners must calculate peak hourly passenger traffic, not just average daily numbers. A hill station that draws massive weekend crowds requires a system designed for peak load, not average load. For a material ropeway, payload weight, bucket size, and the physical nature of the material being transported all drive the mechanical specification in a fundamentally different direction.
#3 What Happens When the Weather Doesn’t Cooperate?
Weather is not just a minor factor in ropeway construction. Strong winds can damage a system if weather conditions are not considered during manufacturing. A proper ropeway system design avoids revenue loss during extremely poor weather. If not considered, it can lead to regular service interruptions, unhappy passengers, & revenue loss. Different ropeway systems handle wind differently.
For example, monocable gondola systems usually work safely only in wind speeds up to 60–70 km/h. Bicable systems can handle wind speeds up to 90 km/h. Tricable systems are the advanced ones designed for wind speeds exceeding 100 km/h. It makes the right choice for high-altitude crossings.
Collecting at least two to three years of local weather data before finalising the system specifications is a key part of professional ropeway project planning.
#4 How Much Time Are You Losing to Government Approvals?
In India, a ropeway installation that passes through forest land, near water bodies, or in ecologically sensitive zones requires clearances from multiple authorities, the Ministry of Environment, Forest and Climate Change, state forest departments, and, in some cases, tribal affairs ministries.
Urban cable car system projects need proper coordination with municipal departments, customs authorities, and traffic management agencies. Even a relatively straightforward tourism ropeway in a hill district needs state government approval under the Indian Tramways Act.
Starting the approval process with the site survey rather than after engineering is complete can save 6 to 1 year on the overall project schedule. Identifying all required clearances early is an essential part of any serious ropeway installation project timeline.
#5 Site Accessibility and Logistics Planning
One of the biggest engineering challenges is getting heavy machinery to a mountain site. Where road access is limited, heavy equipment must be transported in smaller sections to remote or high-altitude locations, and then it is reassembled on-site, which takes significant time and skilled labour. This process alone can account for 15–25% of the total ropeway installation cost. Where roads are not available, material ropeway systems are used to transport construction materials during the projects. This is one of the most important but often ignored parts of the ropeway project planning. Delays in getting access mean losing future revenue.
#6 Budget Planning Matters More Than Most People Expect
The actual ropeway installation cost is not only the cables and cabins. The final budget includes civil works, foundations of towers, shipping of goods, electrical systems, approvals, and long-term maintenance. These are all included in the final budget. Proper ropeway project planning is crucial to maintain the budget and avoid unexpected costs. This helps the system to remain efficient and financially sustainable over time.
Are You Working With a Partner Who Has “Actually” Done This Before?
M&M Ropeways is known for its strong track record and industry expertise, which speaks for itself even before a conversation starts. The company has over 120 completed projects and 35 years of hands-on experience. The team has delivered ropeway installations across some of India’s most demanding terrain regions. This includes their highest installation at 18,000 feet, with systems designed to operate in temperatures as low as -35°C. Every system is engineered by European design professionals and is fully certified under OITAF guidelines. We also hold ISO certification and meet global compliance standards.
Moreover, M&M Ropeways works on all types of projects, whether it is a government infrastructure project or a private industrial project. It brings advanced engineering methods, strong and durable systems, and also reliable warranties. This gives clients confidence not only during installation but also for many years of smooth operation.
Trusted by leading industries and government sectors, this is a partner that has genuinely done this before.
Make the Smart Choice. Secure the Future. Build It Right.
A successful ropeway installation project depends on careful planning at every stage. From terrain and capacity to weather, approvals, logistics, budget, technology, and the right project partner. All these factors are connected. A single decision only in a particular area can affect many others later in the project. So, examine the location first and make a proper strategy before starting construction.
M&M Ropeways applies decades of experience in different types of ropeway installation projects. Also, the team carefully plans every detail before the project begins, whether it is a tourism cable car in the mountains or a heavy-duty material ropeway for a construction site.
Reach out to M&M Ropeways today and talk over your project needs with our engineering team.
