Selecting the right conveyor belt is a four-variable decision. Material, incline, capacity, and site conditions. If you ever get any one wrong, then the belt either underperforms, tears early, or fails at the splice. Each variable maps to a set of specs that decide belt life, including cover grade, carcass type, belt width, tensile rating, and environmental resistance. When the specifications match the site variables, procurement and project engineers can order a belt that survives its duty cycle and returns cost per ton over its service life.
The framework here is universal, though the examples lean into what matters for mining, cement, quarry, and hydropower operations across India and similar terrain.
What Determines the Right Conveyor Belt for Your Site?
Belt selection comes down to four inputs, which are the material being moved, the incline profile of the route, the throughput target, and the site conditions the belt has to survive. Everything else on the quote sheet, from cover grade and carcass type to width, speed, and splice method, is downstream of these four inputs. Most premature belt failures trace back to one of these four inputs being under-defined at the RFQ stage. A cover grade suited to limestone tears within months on hard iron ore. A chevron pattern that holds material at 22 degrees starts spilling at 28 degrees. A belt sized for nominal capacity chokes the moment feed rate peaks. Each of these mismatches has the same root cause, which is an incomplete brief handed to the supplier.
Before comparing quotes, define these four inputs in detail:
- Material: lump size, bulk density, abrasiveness, temperature, moisture, chemistry
- Incline: maximum gradient, elevation change, route curvature
- Capacity: sustained TPH, peak TPH, operating hours per day, expected service years
- Site conditions: ambient temperature, humidity, sun exposure, fire risk, altitude
Once these are mapped, the belt spec becomes deterministic. Two conveyors with identical belt widths can still differ threefold in service life on the same site, and that gap is closed by cover grade and carcass rating.
How Does Your Material Decide the Belt Cover Grade and Carcass?
The material dictates two things at once. It sets the rubber cover grade on top of the belt. And it sets the carcass that carries the load underneath. Moreover, cover grade handles abrasion, cutting, and chemical exposure, while the carcass handles tensile force, elongation, and impact.
Cover grades follow three international standards that a project engineer will encounter on any global tender.
- ISO 10247 classifies covers as H for severe cut and gouge, D for severe abrasion, and L for moderate service.
- DIN 22102 uses W, X, and Y in the same order of severity. Indian and RMA references map to M24 at 24 MPa tensile strength for cut and gouge duty and to N17 at 17 MPa for general abrasion.
- Sharp, blocky ore such as iron ore or hard rock demands H or M24. Limestone, sand, and coal are usually well served by D, X, or N17.
Carcass choice starts with EP fabric, which is a polyester warp with a nylon weft, and it moves to steel cord only when tensile demand exceeds fabric limits.
| Material | Cover Grade | Carcass |
| Coal, limestone, sand | N17 / DIN Y / ISO L | EP 400 – EP 800 |
| Iron ore, bauxite, granite | M24 / DIN W / ISO H | EP 800 – EP 1250 or steel cord |
| Cement clinker (hot) | Heat resistant to 150–200°C | EP with heat-treated skim |
| Cement clinker (hot) | Oil/chemical resistant | EP or NN fabric |
One point most vendor brochures skip is that the cover and the carcass age on different clocks. A three-year cover on a six-year carcass is a wasted specification, because the belt has to come out of service before the carcass has delivered its full value.
What Incline Angle Can a Conveyor Belt Truly Handle?
A conventional troughed belt conveyor tops out at roughly 18 degrees of incline. If you try to push beyond that, material rollback, spillage, and cover wear all accelerate. Above 18 degrees, the belt design itself has to change. Chevron-patterned belts extend the working angle to 25 to 35 degrees, depending on cleat height, which typically runs between 6 mm and 32 mm, and on the material’s own angle of repose. Sidewall belts with cross cleats can climb to 90 degrees, though the effective belt width shrinks because the sidewalls consume load space.

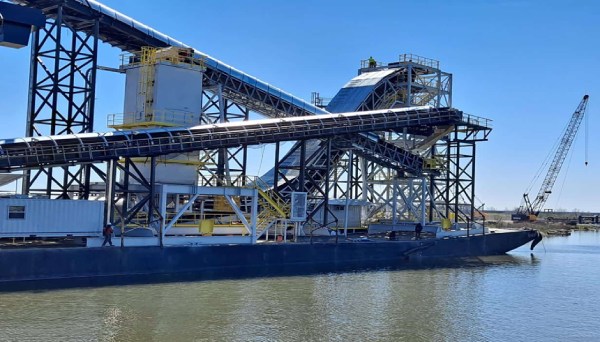

Sandwich Belt High Angle Conveyors, where two belts hug the material between them, move bulk loads at up to 90 degrees with no hard capacity ceiling. That’s why they are now quite common in deep-pit mining and high-lift cement works, where a more conventional troughed belt would often need several flights and additional transfer stations.
| Belt Type | Max Practical Incline | Best For |
| Standard troughed belt | ~18° | Flat to gently sloped runs |
| Chevron (cleated) belt | 25-35° | Coarse dry aggregate, coal |
| Sidewall belt with cleats | Up to 90° | Vertical lifts, tight footprint |
| Sandwich Belt High Angle Conveyor | Up to 90° | High-capacity mine and plant lifts |
| Aerial Ropeway Conveyor | Terrain-independent | Cross-valley, cross-forest, cross-river |
Sometimes the terrain itself is the block. Deep gorges, forested slopes, protected forest land, and rivers running full through the monsoon season. A ground-mounted belt cannot cross any of these without heavy civil work, and even then it is a compromise. That is where an Aerial Ropeway Conveyor takes over. It lifts the belt off the ground and onto track ropes overhead, and just one span between two towers can stretch out as far as 2,500 metres. At that point, incline stops being a belt problem and becomes a routing problem – and the answer is no longer a wider belt or a taller cleat.
How Do You Choose Conveyor Belt Width for a Given Capacity?
Width is what caps your throughput. A wider belt simply carries more material across its cross section, and once you multiply that cross section by belt speed, you get tonnes per hour. That is the whole logic behind the sizing formula:
Q = V × ρ × cos α × CF
Here Q is capacity in tonnes per hour, V is volumetric capacity calculated from belt width, speed, and trough factor, ρ is material bulk density, cos α accounts for incline loss, and CF is a shape factor for the surcharge angle. Once these inputs are known, width follows from the target Q.
Standard belt widths run 500, 650, 800, 1000, 1200, 1400, 1600, 1800, and 2000 mm, and they extend beyond 3000 mm for high-tonnage overland duty. Belt speeds sit between 2 and 6 m/s in most industrial installations. Slower speeds suit friable materials, while faster speeds move coal, grain, and fine aggregate. Trough angle is typically 35 degrees on standard three-roll idlers. A working example makes the formula concrete. A 1000 mm belt at 2 m/s with a 35-degree trough moves roughly 500 to 700 TPH of coal-density material. Whereas doubling the width to 2000 mm at the same speed can push throughput past 2,500 TPH. One lump-to-width rule that saves belts in the field is that the largest lump should not exceed one-third of the belt width. Feed 400 mm lumps onto an 800 mm belt, and edge tears follow within weeks, regardless of cover grade.
EP Fabric vs Steel Cord Conveyor Belt: Which One Fits Your Distance?
EP fabric conveyor belt vs steel cord conveyor belt is not a quality contest, because each solves a different problem. EP is the default for short-to-medium runs, tight pulley geometries, and sites where splicing has to be done in-house on tight windows. Steel cord takes over on long overland routes, high lifts, and duties where fabric elongation would consume the entire take-up travel.
| Factor | EP Fabric Belt | Steel Cord Belt |
| Typical run length | Up to 1-1.5 km | 1 km to overland (10+ km) |
| Tensile range | EP 400 – EP 2000 | ST 630 – ST 7500+ |
| Elongation | Higher – needs longer take-up | Very low – compact take-up |
| Pulley diameter | Smaller pulleys acceptable | Larger pulleys required |
| Splice | Hot vulcanized or mechanical | Hot vulcanized only, precise |
| Initial cost | Lower | Higher |
The practical break-even is straightforward. Below 1 km of run length and 200 m of lift, EP usually wins on total cost. Above 1.5 km, or on any steep-lift overland duty, steel cord pays back through lower elongation, lower belt mass per metre carried, and longer replacement cycles.
What Site Conditions Change the Belt Specification the Most?
Environment quietly rewrites the belt spec. A belt that performs in a temperate warehouse fails at a Rajasthan cement kiln or a Bhutanese hydropower gorge, because the environment attacks specifications the mechanical calculation never sees. Four site variables move the needle most.
- Temperature. Hot materials such as cement clinker at 150 to 200°C demand heat-resistant covers with modified skim rubber. Cold ambient temperatures below minus 20°C, common at high-altitude sites, need cold-flexible compounds instead.
- Chemistry. Oil, grease, or fertilizer contact strips a standard cover within months. NBR and HNBR compounds resist these chemistries and hold their properties longer.
- Moisture, dust, and altitude. Long monsoon exposure, high-altitude UV, and dust-laden Himalayan corridors accelerate cover ageing and splice degradation. Steel cord belts in these environments need reinforced edge sealing, because water tracks along the cut edges and corrodes the cords from the outside inward.
The Indian angle rarely captured in vendor documents is this. Monsoon-exposed steel cord installations without proper edge sealing lose service life not from tension failure but from silent internal corrosion. That failure mode shows up years after commissioning as splice pull-out, and it is misdiagnosed as a splice problem when it is actually a specification problem at the cover and edge.
How Do You Avoid the Most Common Belt Selection Mistakes?
Four errors show up repeatedly in field audits, and each one is fixable at the spec stage.
- Under-speccing the carcass to save quoted cost. Splice pull-out and edge damage within 18 months erase the savings many times over.
- Quoting breaking strength when the calculation needs operating strength. A 630 N/mm belt at a 10:1 safety factor gives only 63 N/mm working tension, which is often not enough for a long overland duty.
- Choosing a chevron belt for a 40-degree incline. Chevrons top out around 35 degrees, and above that, sidewall or sandwich belt geometry is the correct answer, not a deeper cleat.
- Ignoring lump-to-width ratio. Feeding 400 mm lumps onto an 800 mm belt guarantees edge tears within weeks, because the largest lump should stay under one-third of belt width.
Every one of these is fixable at the specification stage. None is fixable cheaply after installation, because by then the belt is already on the drum.
The Bottom Line
Belt selection is like engineering. Get material, incline, capacity, and site conditions right, and the specification follows from tables and standards. Get any one wrong, and the line pays for it in unplanned outages. For sites where the incline, distance, or terrain exceeds what a conventional belt can handle, M&M Ropeways designs and manufactures Sandwich Belt High Angle Conveyors up to 90 degrees, in partnership with Dos Santos International, USA. The company also builds aerial ropeway conveyors that carry up to 25,000 t/h across spans of up to 2,500 metres between towers. As a conveyor belt manufacturer for mining and quarry projects in India and abroad, M&M Ropeways specifies the system to your terrain, throughput, and service life target.
Talk to M&M Ropeways, the leading ropeway manufacturer in India, for a site-specific specification.
