How to Select the Right Conveyor Belt: A Complete Buyer’s Guide

by ropeway-admin | Aug 17, 2026 | Conveyors

Selecting the right conveyor belt is a four-variable decision. Material, incline, capacity, and site conditions. If you ever get any one wrong, then the belt either underperforms, tears early, or fails at the splice.  Each variable maps to a set of specs that decide belt life, including cover grade, carcass type, belt width, tensile rating, and environmental resistance. When the specifications match the site variables, procurement and project engineers can order a belt that survives its duty cycle and returns cost per ton over its service life.

The framework here is universal, though the examples lean into what matters for mining, cement, quarry, and hydropower operations across India and similar terrain.

What Determines the Right Conveyor Belt for Your Site?

Belt selection comes down to four inputs, which are the material being moved, the incline profile of the route, the throughput target, and the site conditions the belt has to survive. Everything else on the quote sheet, from cover grade and carcass type to width, speed, and splice method, is downstream of these four inputs. Most premature belt failures trace back to one of these four inputs being under-defined at the RFQ stage. A cover grade suited to limestone tears within months on hard iron ore. A chevron pattern that holds material at 22 degrees starts spilling at 28 degrees. A belt sized for nominal capacity chokes the moment feed rate peaks. Each of these mismatches has the same root cause, which is an incomplete brief handed to the supplier.

Before comparing quotes, define these four inputs in detail:

• Material: lump size, bulk density, abrasiveness, temperature, moisture, chemistry
• Incline: maximum gradient, elevation change, route curvature
• Capacity: sustained TPH, peak TPH, operating hours per day, expected service years
• Site conditions: ambient temperature, humidity, sun exposure, fire risk, altitude

Once these are mapped, the belt spec becomes deterministic. Two conveyors with identical belt widths can still differ threefold in service life on the same site, and that gap is closed by cover grade and carcass rating.

How Does Your Material Decide the Belt Cover Grade and Carcass?

The material dictates two things at once. It sets the rubber cover grade on top of the belt. And it sets the carcass that carries the load underneath. Moreover, cover grade handles abrasion, cutting, and chemical exposure, while the carcass handles tensile force, elongation, and impact.

Cover grades follow three international standards that a project engineer will encounter on any global tender.

• ISO 10247 classifies covers as H for severe cut and gouge, D for severe abrasion, and L for moderate service.
• DIN 22102 uses W, X, and Y in the same order of severity. Indian and RMA references map to M24 at 24 MPa tensile strength for cut and gouge duty and to N17 at 17 MPa for general abrasion.
• Sharp, blocky ore such as iron ore or hard rock demands H or M24. Limestone, sand, and coal are usually well served by D, X, or N17.

Carcass choice starts with EP fabric, which is a polyester warp with a nylon weft, and it moves to steel cord only when tensile demand exceeds fabric limits.

One point most vendor brochures skip is that the cover and the carcass age on different clocks. A three-year cover on a six-year carcass is a wasted specification, because the belt has to come out of service before the carcass has delivered its full value.

What Incline Angle Can a Conveyor Belt Truly Handle?

A conventional troughed belt conveyor tops out at roughly 18 degrees of incline. If you try to push beyond that, material rollback, spillage, and cover wear all accelerate. Above 18 degrees, the belt design itself has to change. Chevron-patterned belts extend the working angle to 25 to 35 degrees, depending on cleat height, which typically runs between 6 mm and 32 mm, and on the material’s own angle of repose. Sidewall belts with cross cleats can climb to 90 degrees, though the effective belt width shrinks because the sidewalls consume load space.

Sandwich Belt High Angle Conveyors, where two belts hug the material between them, move bulk loads at up to 90 degrees with no hard capacity ceiling. That’s why they are now quite common in deep-pit mining and high-lift cement works, where a more conventional troughed belt would often need several flights and additional transfer stations.

Sometimes the terrain itself is the block. Deep gorges, forested slopes, protected forest land, and rivers running full through the monsoon season. A ground-mounted belt cannot cross any of these without heavy civil work, and even then it is a compromise. That is where an Aerial Ropeway Conveyor takes over. It lifts the belt off the ground and onto track ropes overhead, and just one span between two towers can stretch out as far as 2,500 metres. At that point, incline stops being a belt problem and becomes a routing problem – and the answer is no longer a wider belt or a taller cleat.

How Do You Choose Conveyor Belt Width for a Given Capacity?

Width is what caps your throughput. A wider belt simply carries more material across its cross section, and once you multiply that cross section by belt speed, you get tonnes per hour. That is the whole logic behind the sizing formula:

Q = V × ρ × cos α × CF

Here Q is capacity in tonnes per hour, V is volumetric capacity calculated from belt width, speed, and trough factor, ρ is material bulk density, cos α accounts for incline loss, and CF is a shape factor for the surcharge angle. Once these inputs are known, width follows from the target Q.

Standard belt widths run 500, 650, 800, 1000, 1200, 1400, 1600, 1800, and 2000 mm, and they extend beyond 3000 mm for high-tonnage overland duty. Belt speeds sit between 2 and 6 m/s in most industrial installations. Slower speeds suit friable materials, while faster speeds move coal, grain, and fine aggregate. Trough angle is typically 35 degrees on standard three-roll idlers. A working example makes the formula concrete. A 1000 mm belt at 2 m/s with a 35-degree trough moves roughly 500 to 700 TPH of coal-density material. Whereas doubling the width to 2000 mm at the same speed can push throughput past 2,500 TPH. One lump-to-width rule that saves belts in the field is that the largest lump should not exceed one-third of the belt width. Feed 400 mm lumps onto an 800 mm belt, and edge tears follow within weeks, regardless of cover grade.

EP Fabric vs Steel Cord Conveyor Belt: Which One Fits Your Distance?

EP fabric conveyor belt vs steel cord conveyor belt is not a quality contest, because each solves a different problem. EP is the default for short-to-medium runs, tight pulley geometries, and sites where splicing has to be done in-house on tight windows. Steel cord takes over on long overland routes, high lifts, and duties where fabric elongation would consume the entire take-up travel.

The practical break-even is straightforward. Below 1 km of run length and 200 m of lift, EP usually wins on total cost. Above 1.5 km, or on any steep-lift overland duty, steel cord pays back through lower elongation, lower belt mass per metre carried, and longer replacement cycles.

What Site Conditions Change the Belt Specification the Most?

Environment quietly rewrites the belt spec. A belt that performs in a temperate warehouse fails at a Rajasthan cement kiln or a Bhutanese hydropower gorge, because the environment attacks specifications the mechanical calculation never sees. Four site variables move the needle most.

• Temperature. Hot materials such as cement clinker at 150 to 200°C demand heat-resistant covers with modified skim rubber. Cold ambient temperatures below minus 20°C, common at high-altitude sites, need cold-flexible compounds instead.
• Chemistry. Oil, grease, or fertilizer contact strips a standard cover within months. NBR and HNBR compounds resist these chemistries and hold their properties longer.
• Moisture, dust, and altitude. Long monsoon exposure, high-altitude UV, and dust-laden Himalayan corridors accelerate cover ageing and splice degradation. Steel cord belts in these environments need reinforced edge sealing, because water tracks along the cut edges and corrodes the cords from the outside inward.

The Indian angle rarely captured in vendor documents is this. Monsoon-exposed steel cord installations without proper edge sealing lose service life not from tension failure but from silent internal corrosion. That failure mode shows up years after commissioning as splice pull-out, and it is misdiagnosed as a splice problem when it is actually a specification problem at the cover and edge.

How Do You Avoid the Most Common Belt Selection Mistakes?

Four errors show up repeatedly in field audits, and each one is fixable at the spec stage.

1. Under-speccing the carcass to save quoted cost. Splice pull-out and edge damage within 18 months erase the savings many times over.
2. Quoting breaking strength when the calculation needs operating strength. A 630 N/mm belt at a 10:1 safety factor gives only 63 N/mm working tension, which is often not enough for a long overland duty.
3. Choosing a chevron belt for a 40-degree incline. Chevrons top out around 35 degrees, and above that, sidewall or sandwich belt geometry is the correct answer, not a deeper cleat.
4. Ignoring lump-to-width ratio. Feeding 400 mm lumps onto an 800 mm belt guarantees edge tears within weeks, because the largest lump should stay under one-third of belt width.

Every one of these is fixable at the specification stage. None is fixable cheaply after installation, because by then the belt is already on the drum.

The Bottom Line

Belt selection is like engineering. Get material, incline, capacity, and site conditions right, and the specification follows from tables and standards. Get any one wrong, and the line pays for it in unplanned outages. For sites where the incline, distance, or terrain exceeds what a conventional belt can handle, M&M Ropeways designs and manufactures Sandwich Belt High Angle Conveyors up to 90 degrees, in partnership with Dos Santos International, USA. The company also builds aerial ropeway conveyors that carry up to 25,000 t/h across spans of up to 2,500 metres between towers. As a conveyor belt manufacturer for mining and quarry projects in India and abroad, M&M Ropeways specifies the system to your terrain, throughput, and service life target.

Talk to M&M Ropeways, the leading ropeway manufacturer in India, for a site-specific specification.

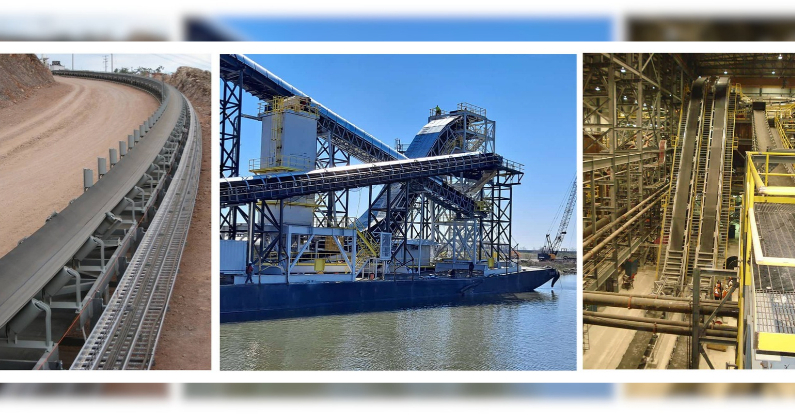

Incline Conveyor Belts: Types, Angle Limits & High-Angle Solutions

by ropeway-admin | Aug 14, 2026 | Conveyors

An incline conveyor belt is a continuous belt system. Engineered to move bulk material or packaged goods between two different elevations. Unlike a flat conveyor, its angle is the single design variable that dictates capacity, belt selection, and drive power. Whether the load stays put or slides back. The problem engineers have faced time and again when designing inclined belt conveyor systems is that the physics become more of an obstacle the steeper the angle.

This guide from M&M Ropeways breaks down the belt types, the real angle limits, and how high-angle conveyors bypass those limits without spilling a single kilogram.

What Is an Incline Conveyor Belt?

An incline conveyor belt is a mechanical handling system that lifts material from a lower to a higher elevation. How? By using a moving belt looped around powered pulleys. The belt runs along a supporting structure set at a fixed angle to the horizontal, driven by a motor at one end and tensioned by idlers along its length. The goal is to replace trucks, forklifts, and manual lifting with a steady, low-labor flow of material.

In practice, it does much more than that:

• Moves bulk solids like coal, ore, cement clinker, aggregate, and grain uphill
• Feeds crushers, screens, silos, hoppers, and loading bays
• Bridges elevation gaps inside factories, mines, ports, and tunnelling projects
• Reduces the ground footprint of material transport corridors

The belt itself is where most of the engineering intelligence sits. The conveyor can only run as steep as its surface pattern, sidewall geometry, and cover compound allow it to before the force of gravity overcomes the friction that is holding the load in place.

What Are the Main Types of Incline Conveyor Belts?

Incline conveyor belts fall into five distinct families. Each is engineered for a specific angle band and material profile. The type you pick is dictated by two variables: the incline angle and the flow characteristics of the material.

Each family exists because a single belt design cannot solve for every angle. At each point of transition, a new belt architecture takes over from the one that had been holding the material up until that point.

What Is the Maximum Angle for a Standard Incline Conveyor Belt?

Standard flat incline conveyor belts hold reliably between 18° and 20°. You can stretch that to 30°, but only if the material behaves, and even then you are at the outer edge. Cross that edge and the failure pattern is predictable: the load rolls back, drive power spikes to hold it, and belt wear ramps up fast. CEMA’s Belt Conveyors for Bulk Materials handbook plays it safe and caps the practical design range at 10° to 20° for most bulk solids. The gap most operators miss is between the number on the spec sheet and the number the site can actually sustain. A belt qualified at 25° should not be run at 25° in the field. Why? Because humidity, dust, fines migration, feed-rate spikes, and belt stretch each cost you a degree or two off that ceiling. So it’s better to stack them together, and they can wipe out your safety margin before anyone spots it.

Which is why senior designers leave a 3° to 5° buffer below the tested limit. That buffer is what keeps the belt running when the site drifts away from lab conditions, which it always does. Angle limits by belt architecture:

• Smooth flat belt: 18° to 20° reliable, 25° absolute
• Chevron patterned belt: up to 30°
• Cleated belt: up to 45°
• Corrugated sidewall belt: up to 90°

Beyond these limits, the belt itself is no longer the solution. The geometry of the system has to change.

At What Angle Does Material Slide Off a Conveyor Belt?

Material begins to slide off a conveyor belt when the incline angle exceeds the material’s angle of repose. This is the natural slope formed by a freely heaped pile of that material. For most bulk solids, this ranges between 25° and 45°, depending on particle shape, moisture content, and lump size.

The physics is simple here. Like gravity pulls the load down the slope. Friction between the load and the belt surface holds it in place once the sine of the incline angle exceeds the coefficient of friction -gravity WINS and rollback BEGINS.

Below are the typical angle-of-repose values:

• Dry sand: 30° to 35°
• Crushed stone/aggregate: 35° to 40°
• Coal (run-of-mine): 35° to 45°
• Cement clinker: 30° to 35°
• Wet clay or sticky ore: highly variable, often lower than expected

For a moving belt, the effective slip angle drops further because vibration, belt sag, and idler transitions all reduce grip. This is why the conveyable angle is almost always well below the material’s static angle of repose, usually by 5° to 10°.

What Is the Difference Between Cleated and Sidewall Conveyor Belts?

Cleated conveyor belts use raised transverse ribs to trap material behind them. Sidewall conveyor belts add a corrugated wall along both edges of the belt, forming a moving bucket that contains the material on all three sides.

The difference sounds small, but in the field it separated a belt that handles 45° from one that handles 90°.

The lump-size trap catches most first-time buyers. Cleats are usually pure rubber or PVC without a reinforcing ply, so a single oversized lump can shear one off. Sidewall belts run into the same issue: pocket depth caps lump size, and once you exceed it, the wall itself starts tearing.  On heavy-tonnage mining feed, both belts hit their ceiling, and this is exactly the point where a high-angle conveyor takes over.

What Is a High-Angle Conveyor and How Does It Overcome Angle Limits?

A high-angle conveyor is a specialised system that transports bulk material at slope angles unreachable by conventional inclined belt conveyor systems, ranging from 30° right up to vertical. The most engineered variant is the Sandwich Belt High Angle Conveyor, which uses two belts running face-to-face to trap the material between them. The mechanism is elegant. The bottom belt carries the load. The top belt presses down on it, generating radial hugging pressure. That pressure multiplies the friction between belt and material, so gravity can no longer pull the load backward, no matter how steep the run. Material is squeezed, not scooped.

Key operating advantages:

• Unlimited angle: reliable operation up to fully vertical
• Unlimited capacity: rates above 10,000 t/h with wide belts
• Gentle on fragile material: hugging pressure is uniform, not impacting
• Smooth belt surfaces: continuous cleaning with standard scrapers and plows
• Standard hardware: conventional idlers, pulleys, and drives keep replacement parts economical

M&M Ropeways manufactures and supplies the Sandwich Belt High Angle Conveyor in partnership with Dos Santos International (USA). This is the firm that invented the sandwich belt principle and holds the patented Snake and Adder Snake designs.  Among the few high-angle conveying technologies, this one has actually been used on rough infrastructure and mining sites all over the world.

Where Are High-Angle Conveyors Used in Mining and Heavy Industry?

High-angle conveyors show up everywhere vertical lift is needed in a space that’s too tight for a more conventional incline system. They are deployed in open-pit mines, underground shafts, cement plants, and hydropower projects, primarily because the site geometry restricts long, shallow conveyor runs, which cannot be extended.

An example of a high-angle conveyor used in mining applications

• Open-pit mines: lifting ore from deep pits directly to surface processing
• Underground mining: hauling muck through steep incline drifts
• Cement plants: moving clinker and limestone up silos and preheater towers
• Hydropower and dam construction: transferring aggregate up steep valley walls
• Tunnelling projects: clearing spoil through vertical shafts
• Ports and stockyards: feeding stackers and reclaimers at height

A high-angle system also cuts spillage, eliminates multiple transfer points, and reduces the exposed dust corridor, all reasons environmental permitting authorities increasingly favour them over trucking or open haulage. On sites where an aerial ropeway conveyor is a better fit, particularly for very long spans over difficult terrain, capacities of up to 25,000 t/h with tower spacing up to 2,500 m are achievable.

How Do You Choose the Right Incline Conveyor for Your Project?

Choosing the right incline conveyor comes down to matching five parameters against the site reality in order. What are they? Angle, material, capacity, footprint, and life-cycle cost.  Within two years, the system either underperforms or exceeds its budget if you make any one of these mistakes.

The system of selection:

1. Angle required: Measure the vertical rise and horizontal run available. If the angle exceeds 20°, a smooth flat belt is already off the table.
2. Material profile: Note lump size, moisture, abrasiveness, and angle of repose. Sticky or oversized lumps rule out cleated belts.
3. Capacity target: Below 500 t/h, sidewall belts are viable. Above that, sandwich belt or aerial ropeway conveyor designs make more sense.
4. Footprint constraint: A 60° high-angle system requires nearly twice as much ground length as a 30° conveyor running 100 metres.
5. Total life-cycle cost:  Examine factors other than capital expenditures, such as drive power, maintenance access, and belt replacement frequency.

Skipping this framework is the reason so many inclined systems get replaced within five years of commissioning, because the initial angle was pushed too close to the theoretical limit.

Conclusion

Incline conveyor belts are a foundational piece of bulk material handling, but their limits are strict, around 20° for standard flat belts and 45° for cleated systems. Beyond that, only sidewall belts, sandwich belts, and aerial ropeway conveyors can move material reliably.

M&M Ropeways designs, manufactures, and installs the full range of these systems. This includes the Sandwich Belt High Angle Conveyor built in cooperation with Dos Santos International, USA, engineered for the steepest. Moreover, there are the highest-tonnage material handling challenges in mining, cement, hydropower, and tunnelling projects.

So, planning an incline or high-angle conveyor project? Talk to the M&M Ropeways engineering team for a system sized to your site angle, tonnage, and material profile.
